In recent years, the rapid development of science and technology has injected new vitality into various fields. In the field of LED display technology, BPIPack technology, with COBIP (Chip On Borad Integrated Packaging) technology as the industry leader, is using its unique design concept and excellent performance Become a leader in future industries.

Introduction:

With the passage of time, LED display technology continues to evolve, and the rise of integrated COB technology has brought a breath of fresh air to the LED direct display industry. Its unique design concept aims to systematically redefine LED packaging technology, abandon traditional brackets and pins, and achieve highly integrated packaging of bare LED chips and driver IC chips, becoming a new benchmark in the industry. The reason why we want to engage in BPIPack technology is that we have made an important discovery in the process of integrated COB industry technology practice: "The reliability of the LED display panel has an important correlation with the number of bracket pins of the packaged device. To If we want to completely solve the problem of excessive failures of LED display panels, the best proactive solution is to remove the bracket pins from the packaging technology. The more thoroughly the bracket pins are removed, the better the panel failure problem will be solved."

Distinctive technical features:

The reason why integrated COB technology has attracted much attention is that its core lies in actively removing the brackets and pins of LED packaging devices and driver IC packaging devices, realizing the integration of lamp drivers on one PCB board or the integration of lamp drivers and pixels in one PCB. highly integrated packaging. This unprecedented design innovation not only improves the performance and reliability of LED displays, but also opens up wider possibilities in various application scenarios.

Original companies focus on bottom-level breakthroughs:

Integrated COB technology was founded by Wei Qiaoshun Optoelectronics in 2010. At that time, the traditional COB technology in the industry was still at the level of device-based COB technology. In the face of new technologies, packaging companies generally believe that it is an impossible industrialized technology. The reason is that the packaging process is too complex and cannot get rid of the problem of first-time pass rate.

After more than ten years of hard work, it seems that it is impossible, so why can it still continue?

The industry's first P7.62 single red LED display panel with integrated COB technology

lIn 2013, integrated COB technology has been able to produce more than ten types of single and double-color LED display panels, which are widely used in bank queue window screens, high-end ultra-thin strip screens, industrial signage screens, and arc creative modeling screens.

The early application form of integrated COB technology was mainly single and double color bar screen products.

lIn 2014, an integrated COB-P4 indoor full-color screen was developed.

A pair of integrated COB-P4 full-color wave screen products exported to Japanese trading companies in 2014

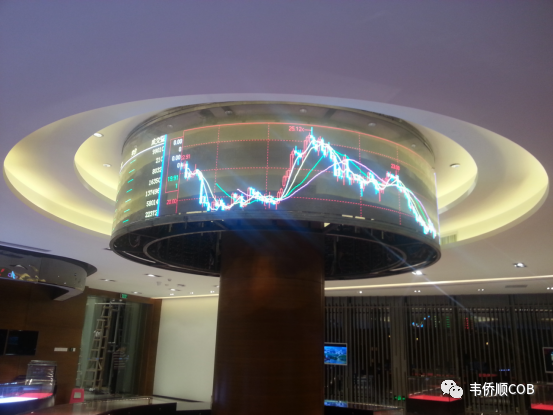

Integrated COB-P4 full-color cylindrical trading screen customized by Zhuhai Hengqin Precious Metals Trading Center in 2014

In 2014, the Supreme Court of Riyadh, the capital of Saudi Arabia, used an ultra-light and ultra-long invisible steel wire hanging P4 full-color screen with integrated COB technology.

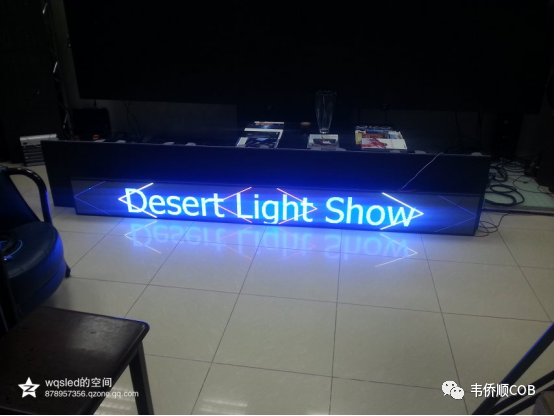

Integrated COB-P4 full-color screen customized by Saudi Desert Light Company

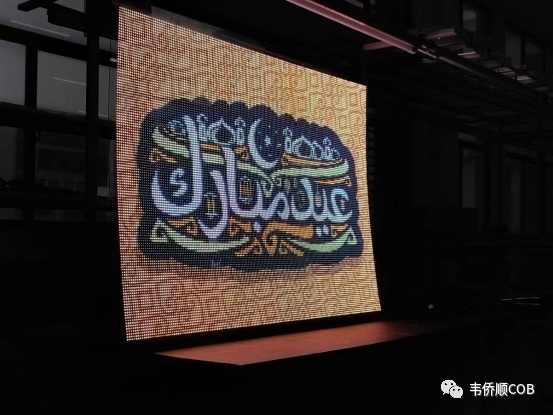

The Saudi Supreme Court integrated COB ultra-light and ultra-long P4 full-color screen hoisting site

lIn 2015, it began to promote this technology in the LED direct display industry and already has integrated COB outdoor P3 products.

COB packaging challenges new limits of outdoor small spacing

Introducing integrated COB technology at the ISE exhibition in the Netherlands

lIn 2016, the integrated COB outdoor P1.875 product was developed, and it already has integrated COB outdoor P10, P8, P6, P5, P4, and P3 module products.

Customized for the sales office of Xiamen Henghe Qishang, one of the top ten luxury homes in Asia

Integrated COB outdoor P6 full-color olive screen

The project is only 200 meters from the seaside

Hainan Yedao lives in the conference hall of Shenzhen Guangming Office

Integrated COB indoor P3 full color screen

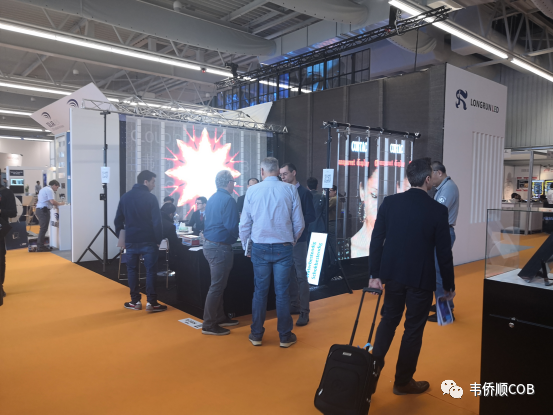

Exhibited at the ISE annual exhibition in the Netherlands

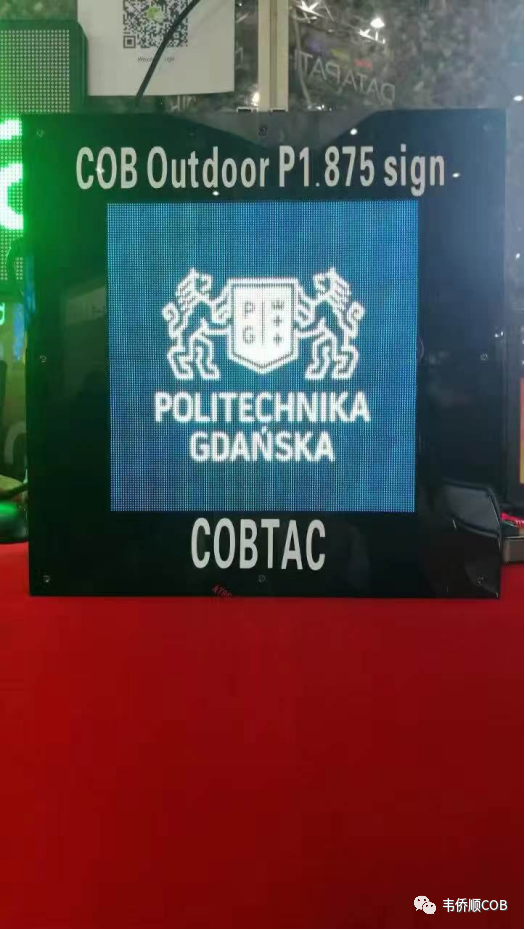

Integrated COB outdoor P1.875 full color sample

lFrom 2017 to 2018, we developed integrated COB indoor, semi-outdoor and rental P3.91-7.82 transparent screen products.

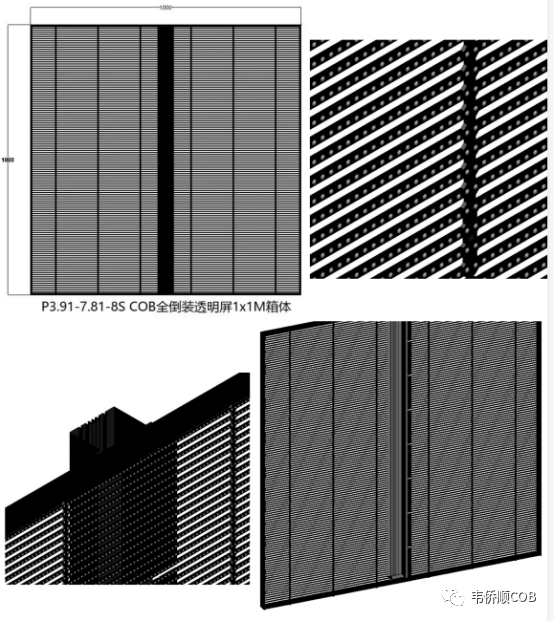

Integrated COB technology transparent screen products

Annual Dutch ISE exhibits integrated COB transparent screen

lIn 2019, after three years of in-depth and systematic research on integrated COB technology, systematic classification ideas and methods for packaging technology were proposed, forming a systematic theoretical idea of BPIPack technology. Based on this idea and within the system technology framework, the second generation technology integrated COC product of this system technology was developed. Compared with the semi-pin removal technology of the first generation integrated COB, the goal of full pin removal is achieved.

This year, it also developed an integrated COB vehicle rear window transparent advertising sticker product, and has more than ten mature product solutions.

Customized vehicle-mounted mobile media advertising operation in the Middle East

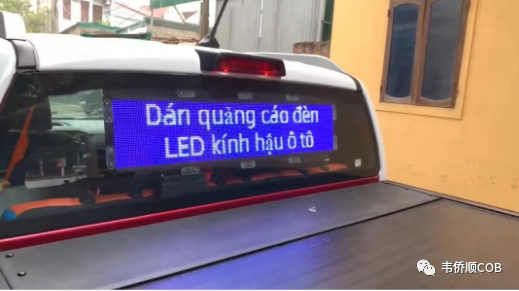

Integrated COB vehicle rear window transparent advertising sticker product

lIn 2020-2021, another integrated CNC-P2.5-5 and P8 transparent screen product with BPIPack technology was developed. Integrated COB's P4 full-color car advertising sticker products, P4 full-color taxi roof advertising player products, P4 full-color bus rear window advertising player products, and 4 bus window-type transparent advertising sticker products.

The second generation technology of BPIPack system technology

Integrated COC technology debuts at annual ISE exhibition in the Netherlands

Customized for foreign customers based on integrated CNC technology

Transparent advertising stickers on bus side windows

Based on integrated COB technology purchased by foreign customers

Full color car rear window advertising stickers

Based on integrated COB technology

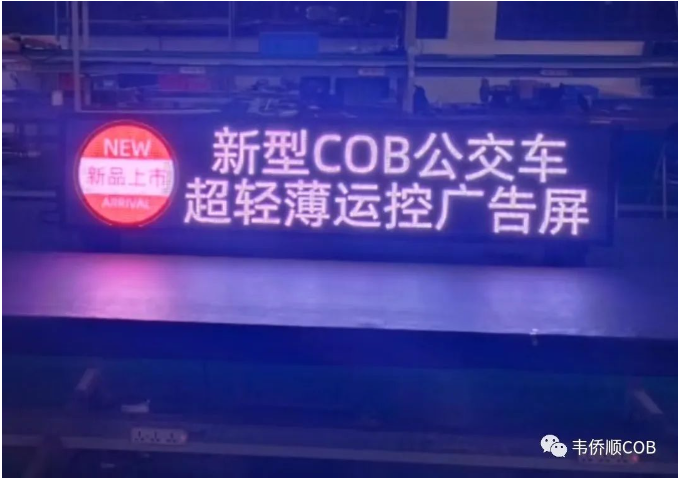

Ultra-thin bus rear window cloud-controlled advertising machine

Based on integrated COB technology

Transparent advertising stickers on bus rear window

lIn 2022, P10, P8, P6.67 crystal film screens and light bar transparent screens with full flip-chip lamp driver and packaged COB were developed. Integrated COB-P4 portable LED display sign.

Full flip-chip lamp driver package

COB crystal film screen developed successfully

Customized full flip chip in Beijing Financial Street

Lamp driver sealed COB crystal film screen project

Portable LED display based on integrated COB technology

Application to be inserted into the side window of a car

lIn 2023, we will continue to develop crystal film screen products based on BPIPack technology, new integrated COB high-brightness, high-reliability, low-light attenuation, power-saving P3.91-7.82 transparent screen products. A total of about 2,000 international and domestic vehicle-mounted mobile media advertising equipment projects have been implemented.

High brightness, high reliability, low light attenuation, power saving

New integrated COB transparent screen products will be launched next year

New integrated COB transparent screen in mass production

The essence of thirteen years of research and development has been condensed into one sentence: "Packaging technology must achieve the elimination of bracket pins."

Leading companies inside and outside the industry participated：

lIn 2014, the industry began to exhibit small-pitch products based on integrated COB technology.

lIn 2016, Changchun Xida began to promote integrated COB indoor fine-pitch products, and Sony began to launch integrated COB fine-pitch products at foreign exhibitions.

lFrom 2017 to 2023, the number of companies investing in integrated COB fine-pitch display products will increase, such as Shin Kong Taiwan, Haixun High-Tech, Ledman Optoelectronics, Jingtai Co., Ltd., Chuangxian Optoelectronics, Jirun Optoelectronics, Unilumin Technology, Lianjian Co., Ltd., Aibi Sen, Zhongqi Optoelectronics, Samsung, BOE, Zhaochi Optoelectronics, Hongli Optoelectronics, Shenzhen Decai, etc.

Integrated COB outdoor small spacing products displayed by Unilumin Technology

The scale of industrial development is gradually expanding：

So far, the industrial capital invested in integrated COB fine-pitch display products has far exceeded 10 billion. According to news from major platforms and summit forums in 2023, the industrial scale of integrated COB fine-pitch products is expected to exceed the industrial scale of traditional technology fine-pitch products.

Key ten years for industry development：

2020-2030 are the most critical 10 years for the development of the LED direct display industry. The landmark and epoch-making event in 2020 is that the "General Technical Specifications for Mini LED Commercial Displays" T/SLDA01-2020 adopted the group standard It is recommended that LED display panels should be classified according to packaging system technology: in the group logo, Mini LED commercial displays appear based on bracket pin type single device packaging lamp driver separation system technology and bracket-free pinless integrated packaging lamp driver system Classification representation of technology. The genetic evaluation index of the underlying technology of Mini LED display screen, the pixel out-of-control rate has increased from 10,000 levels to 1 million levels. Integrated COB technology, as the primary form of bracket-less leadless integrated packaging system technology, has led the decade-long transformation of industrial technology from separation to integration with the advantages of systematic technology demonstrated in fine-pitch displays. Road, ten years is the overlapping transition period of the two system technologies, and it is also the golden period for the transformation of industrial technology from low-end to high-end. In the first half of the decade, there is no doubt that the industrial scale of integrated COB fine-pitch display products will surpass that of traditional technology fine-pitch display products. Driven by its influence, integrated COB technology products will have a sinking influence. And iterate the traditional outdoor display and traditional technology display market. In the second half of the decade, integrated COB technology will continue to open up more new application areas, such as AR/VR, driverless driving, vehicle-mounted optical information interaction, smart home appliances and homes, wearable displays, and stickable displays. , portable intelligent connected splicing display, offline green energy energy-saving display, rolling shutter display, drone stage design and high-altitude 3D display and other military and civilian fields. As the scale of the industry continues to expand and the speed of iteration accelerates, exponential changes may occur.

Welcome the arrival of the post-COB integration era：

After 2030, the industry iteration will be basically completed, and the industry will enter the post-COB integration era, when BPIPack technology will be deeply rooted in the hearts of the people. Once we enter the post-COB integration era, with the further improvement of equipment and process technology capabilities, and the continuous advancement of materials, wireless communications, light-sensing micro-power supply and other technologies, we believe: "There should be at least two X technologies that will be used without brackets." By eliminating pins and integrating them into the light driver + It's no longer a dream.

End of year message：

The rise of bracketless leadless integrated packaging technology marks a new chapter in LED display technology. As a member of the industry, we are well aware of the importance of this innovation, so we should take it seriously and contribute our strength to a more brilliant future for LED display technology through continuous efforts, innovation and cooperation.

Please think carefully about the profound meaning of "packaging technology without brackets and pins", it will become an endogenous driving force for your future development. Catch up with the trend, even if it's drifting with the wind.

Let us welcome a better and more challenging 2024 together!
